2450MHz (S-Band) Forced air-cooled

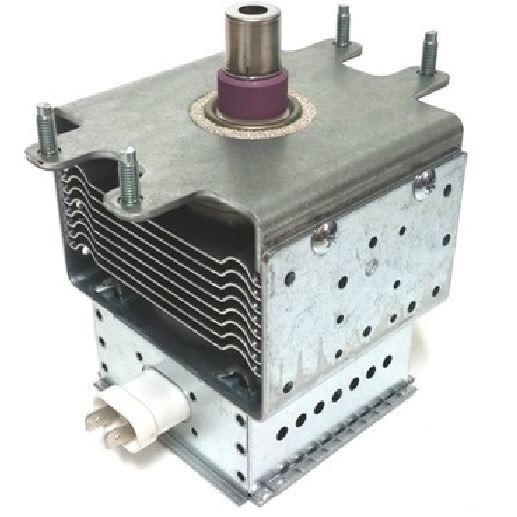

2M137 is forced air-cooled 2450MHz continuous wave magnetron designed for industrial heating applications.
It has packaged Magnet & probe output which can deliver the output upto 1260W with matched load.

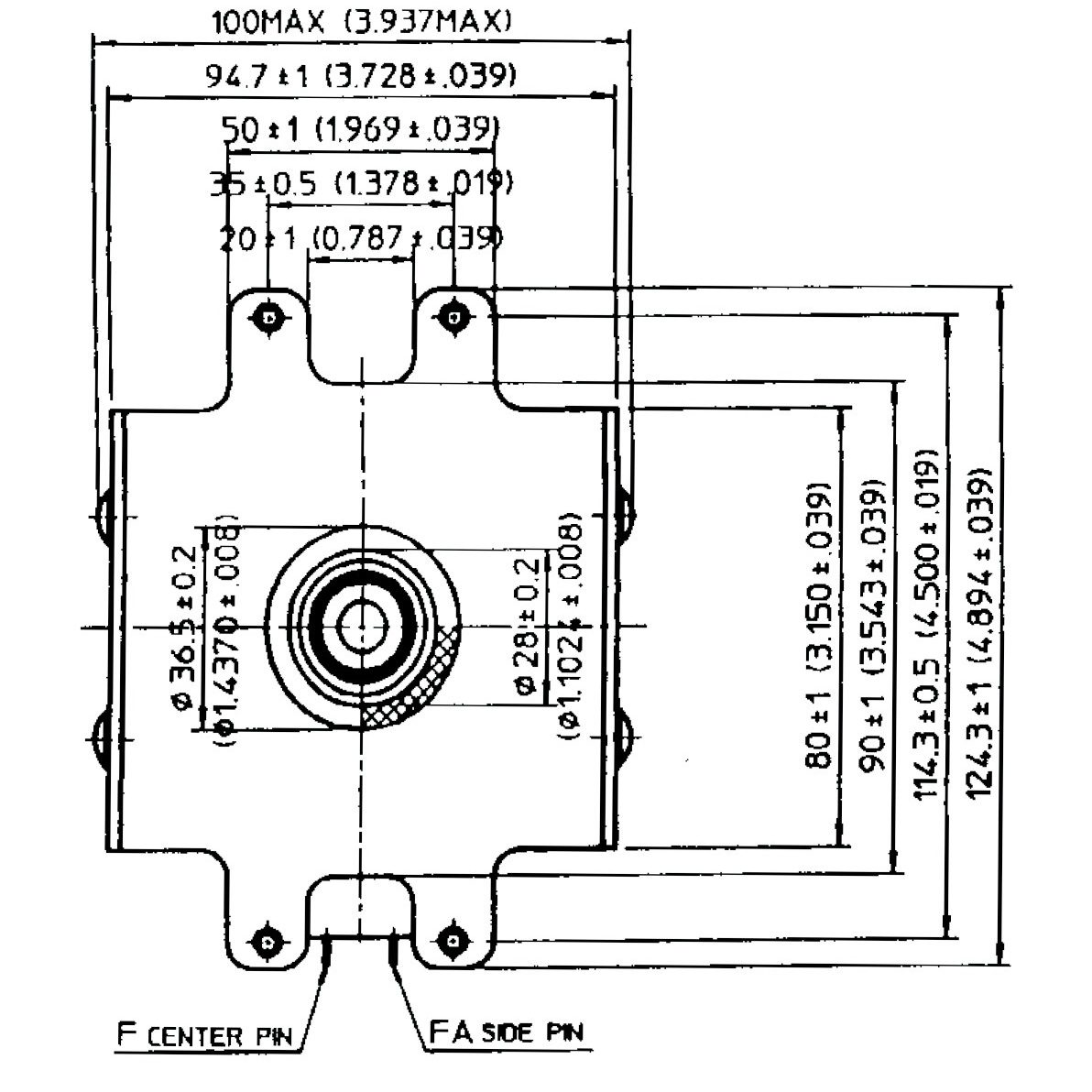

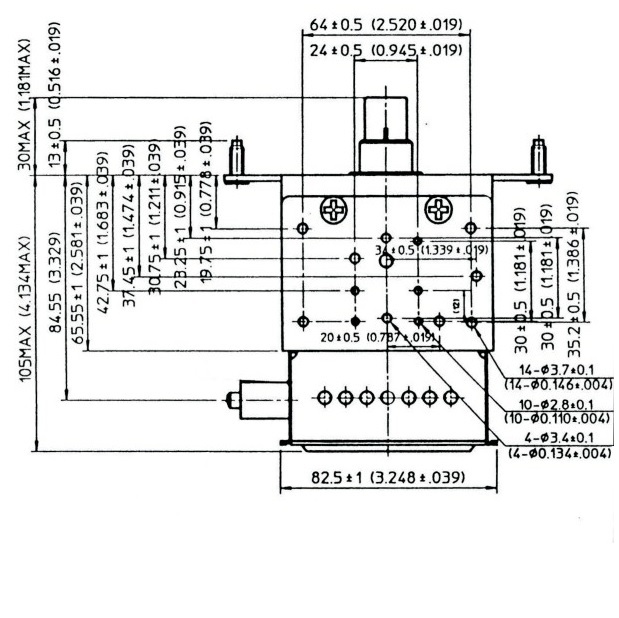

It has mounting, air flow as well as connector in same directions.
It has probe output & it is recommended to launch the output into the rectangular waveguide or into the oven cavity directly.
| Parameter | Typical Ratings | Maximum Rating |
|---|---|---|
| Operational Frequency | 2460 MHz. | 2445 MHz - 2470 MHz |
| Output Power | 1260 W | |
| Filament Voltage (Standby) | 4.4 V | 3.8 V - 4.8 V |
| Filament Current | 14 A | 12.5 A - 15.5 A |
| Anode Voltage | 4.5 kV | 4.3 kV - 4.7 kV |
| Anode Current | 400 mA | 450 mA |
| Approx. Weight | 1.3 kg | |
| Air flow rate | 1700 liter per minute |
