2450MHz(S-Band) water-cooled

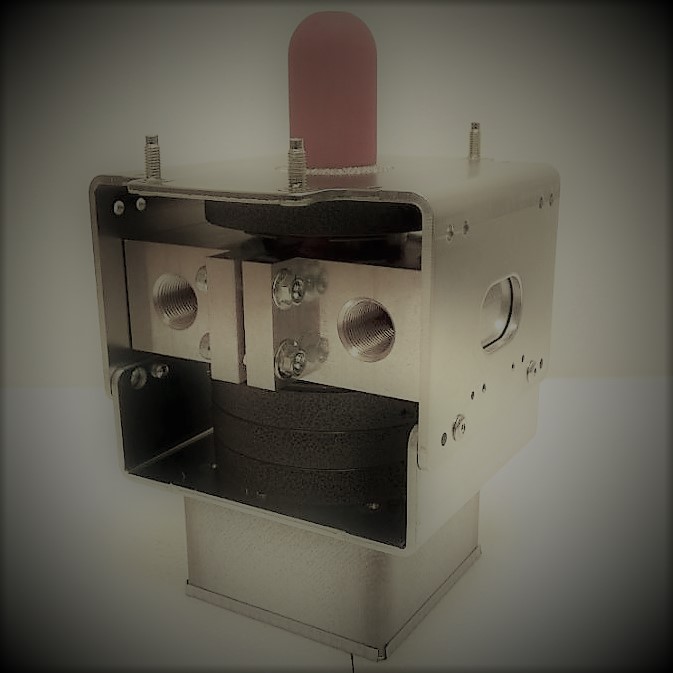

2M252 is water-cooled 2450MHz continuous wave magnetron designed for industrial heating applications.
It has packaged Magnet & probe output which can deliver the output upto 3000W with matched load.
it require the continuous water supply to maintain the anode temperature of the magnetron.
It is available in following configurations.
mounting, air flow & connector in same directions.
mounting & air flow are not in the direction of the connector.
The magnetron is recommended to be mounted in vertical position. Its antenna should always be in either upward or downward direction.
| Parameter | Typical Ratings | Maximum Rating |
|---|---|---|
| Operational Frequency | 2455 MHz | 2440 MHz - 2470 MHz |
| Output Power | 3 kW | |
| Filament Voltage | 4.0 V | 3.8 kW - 4.2 kW |
| Filament Current | 23 A | 100 A |
| Anode Voltage | 4.6 kV | 5.2 kV |
| Anode Current | 840 mA | 2500 mA |
| Approx. Weight | 3.5 kg | |
| Water flow rate | 3 litre per minute |
