The triode is designed for high power HF / RF industrial generators of frequency up to 30MHz used for induction & Dielectric applications.
HF (high frequency) pipe / tube welding machines
RF (radio frequency) textile / food drying machines
Induction hardening machines
HF / RF High power generators for induction & dielectric heating applications

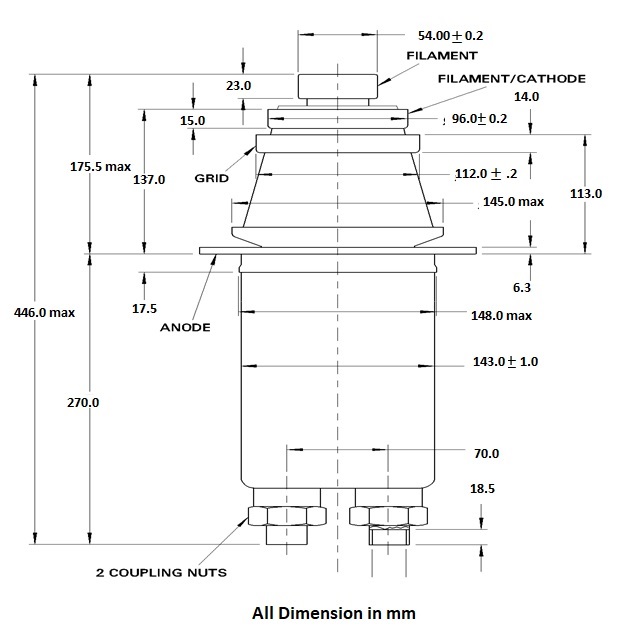

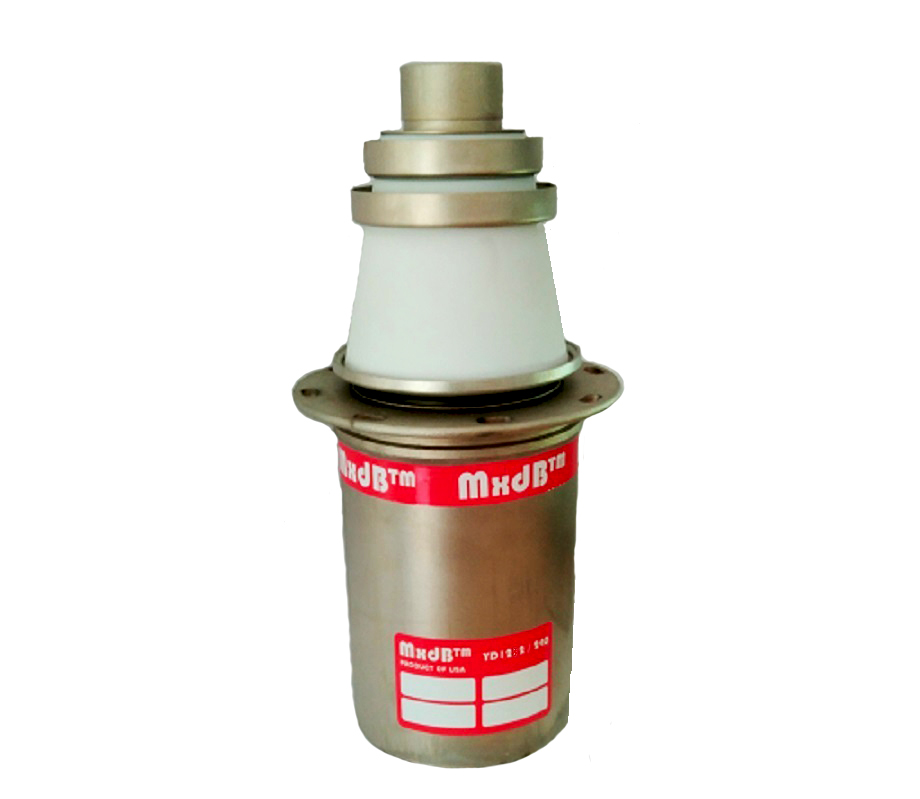

The tube is known by part number YD1202 & YD1202/8752. It is supplied with fixed water jacket & standard filament terminals.
To know more about this tube, please send us the product inquiry.

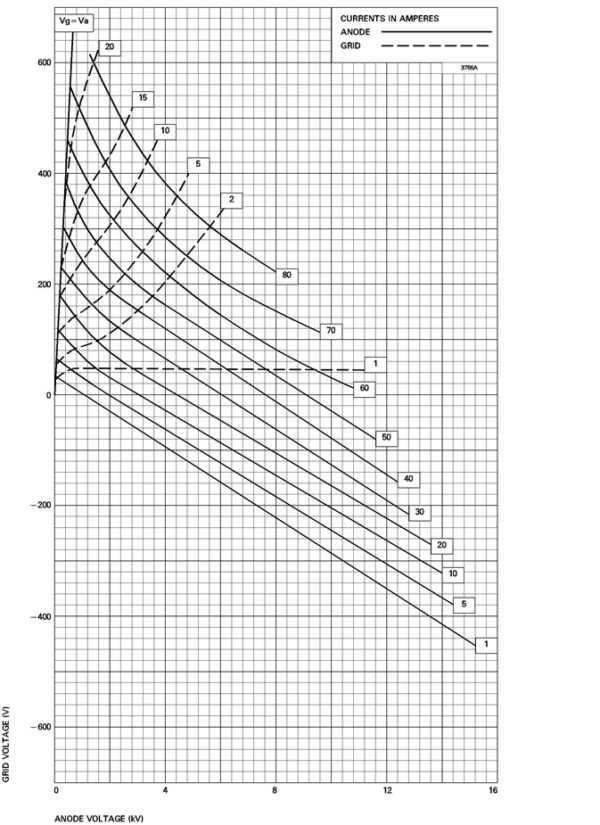

| Specifications | |
|---|---|
| Output power | 163 kW |
| Maximum frequency | 30 MHz |
| Filament voltage | 12.2 V |
| Filament current | 250 A |
| Maximum anode voltage | 15.0 kV |
| Maximum anode dissipation | 100 kW |
| Maximum grid voltage | -2000 V |
| Maximum grid dissipation | 2.5 kW |
| Amplification factor | 36 µ |
| Cooling type | Water |
| Maximum inlet water temperature | 35°C |
| Maximum outlet water temperature | 65°C |
| Maximum temperature at any place on triode | 220°C |
| Overall weight | 11.5 Kg |
| Overall diameter | 190.5 mm |
| Overall length | 446.0 mm |
